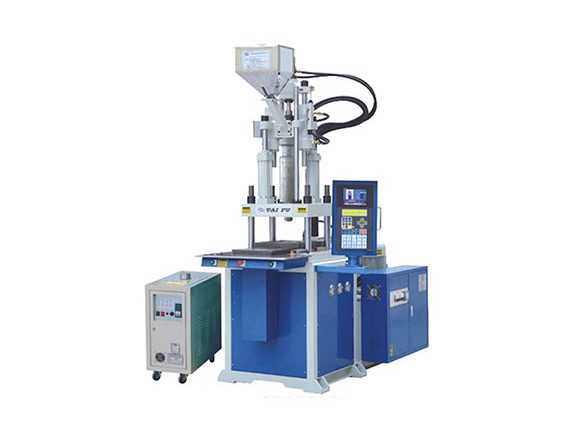

V85S-B立式电木单滑注塑机

立式电木单滑注塑机是一种专门用于加工热固性塑料（如电木料）的注塑设备，它结合了立式注塑机和单滑板设计的特点，具有以下一些显著的优势和特性：

1. 热固性料筒：立式电木单滑注塑机配备有专门为热固性塑料设计的料筒，能够适应电木料等热固性塑料的加工要求。

2. 单滑板设计：这种注塑机采用单滑板结构，下模在外面做镶入工作，提高了作业安全性和工作效率。成品顶出在外部完成，下模独立式顶针，使得嵌件作业更为方便安全。

3. 立式关模和射出：立式注塑机的注射装置和锁模装置处于同一垂直中心线上，模具沿上下方向开闭，这种设计有利于实现嵌件成型，并且模具的表面朝上，便于嵌件的放入和定位。

4. 提高安全性：立式电木单滑注塑机在关模后，下模自动滑移到操作者前方，这种设计提高了操作的安全性，并且成品顶出也在外部完成，减少了操作过程中的风险。

5. 自动化生产：这种注塑机可以与自动化装置如机械手、取出装置等组合操作使用，实现全自动无人化操作，提高了生产效率和降低了人工成本。

6. 精密成型：立式电木单滑注塑机通常配备有多段温度控制、多段射出压力和速度的调整功能，以及射出背压的无段调整，这些特点使得机器更适合精密塑胶零件的成型。

7. 特殊螺杆设计：螺杆的L/D长径比值大，更适合特殊的工程塑料，如电木料，确保了塑化效果和产品质量。

8. 快速合模与低压安全锁模：机器具备快速合模的能力，同时在锁模过程中采用低压安全保护功能，确保了模具和操作人员的安全。

9. 自动故障显示：电控系统能够自动显示故障信息，便于故障排除和维修，提高了设备的可靠性和维护效率。

10. 节能选项：根据客户的需求，立式电木单滑注塑机可以选配伺服电机系列，以实现节能效果。

综上所述，立式电木单滑注塑机以其独特的设计和自动化功能，在热固性塑料的精密成型生产中发挥着重要作用，尤其适用于电木制品的生产。

Vertical bakelite single slide injection molding machine is a kind of injection molding machine specially designed for processing thermosetting plastics (such as bakelite material), which combines the features of vertical injection molding machine and single slide design, and has some significant advantages and characteristics as follows:

1. thermosetting barrel: the vertical bakelite single slide injection molding machine is equipped with a barrel specially designed for thermosetting plastics, which can adapt to the processing requirements of thermosetting plastics such as bakelite.

2. Single-slide design: This kind of injection molding machine adopts single-slide structure, the lower mold does inserting work outside, which improves the operation safety and working efficiency. The ejection of finished products is completed outside, and the independent ejector pin of the lower mold makes the inserting work more convenient and safe.

3. Vertical mold closing and injection: the injection device and mold clamping device of vertical injection molding machine are on the same vertical centerline, the mold opens and closes along the up and down direction, this design is conducive to the realization of insert molding, and the surface of the mold is facing upward, which is convenient for inserts to be put in and positioned.

4. Improvement of safety: After the vertical Bakelite single-slide injection molding machine closes the mold, the lower mold automatically slides to the front of the operator, this design improves the safety of operation, and the ejection of the finished product is also completed externally, which reduces the risk of the operation process.

5. Automated production: This kind of injection molding machine can be used in combination with automation devices such as robots and take-out devices to realize fully automatic unmanned operation, which improves production efficiency and reduces labor costs.

6. Precision molding: Vertical Bakelite single-slide injection molding machines are usually equipped with multi-stage temperature control, multi-stage injection pressure and speed adjustment functions, as well as non-stage adjustment of injection back pressure, these features make the machines more suitable for molding precision plastic parts.

7. Special screw design: the screw has a large L/D L/D ratio, which is more suitable for special engineering plastics, such as bakelite, ensuring the plasticizing effect and product quality.

8. Fast mold closing and low pressure safety locking: the machine has the ability of fast mold closing, and at the same time, it adopts low pressure safety protection function in the process of mold locking, which ensures the safety of the molds and the operators.

9. automatic fault display: the electronic control system can automatically display fault information, which is convenient for troubleshooting and maintenance, and improves the reliability and maintenance efficiency of the equipment.

10. energy-saving options: according to the customer's demand, vertical bakelite single-slide injection molding machine can be equipped with optional servo motor series to achieve energy-saving effect.

To sum up, vertical bakelite single-slide injection molding machine plays an important role in the precision molding production of thermosetting plastics with its unique design and automation function, which is especially suitable for the production of bakelite products.
